BA080-12-D0B-01

BA080-12-D0B-01

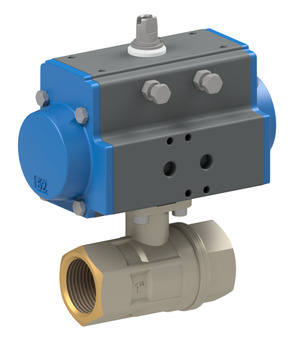

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-40bar; length 67mm; actuator PAD052-H

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 1.433 Kg
Short Itemnumber: BA08012D0B01
https://www.stasto.pl/web/image/product.template/225403/image_1920?unique=70bacad

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-40bar; length 67mm; actuator PAD052-H

1.268,50 zł 1268.5 PLN 1.268,50 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of brass 2500-1/2"-A
2500-1/2"-A x 1.0 Pcs
Ball valve made of brass 2500-1/2"-A
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm
Pneumatic actuator PAD052-H
PAD052-H x 1.0 Pcs
Pneumatic actuator PAD052-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
