BA080-112-QL

BA080-112-QL

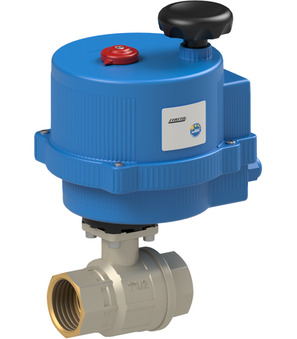

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 11/2"; DN 40mm; Pressure range 0-40bar; Length 114mm; Operating time 8s; Voltage 24VAC/DC; NO-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.12 Kg
Short Itemnumber: BA080112QL
https://www.stasto.pl/web/image/product.template/147375/image_1920?unique=a9dccc9

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 11/2"; DN 40mm; pressure range 0-40bar; length 114mm; operating time 8s; voltage 24VAC/DC; NO-accumulator for safety position

4.263,20 zł 4263.2 PLN 4.263,20 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of brass 2500-11/2"
2500-11/2" x 1.0 Pcs
Ball valve made of brass 2500-11/2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0...40bar; Length 114mm; Flange ISO5211 F05; Square 11mm
Electrical actuator VB030-QE8-Q11
VB030-QE8-Q11 x 1.0 Pcs
Electrical actuator VB030-QE8-Q11
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Function NO
