BA080-10-PL

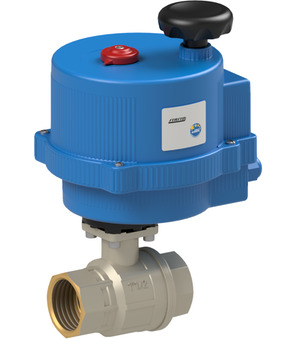

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 90mm; Operating time 10s; Voltage 24VAC/DC; NC-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.093 Kg
Short Itemnumber:BA08010PL
https://www.stasto.pl/web/image/product.template/145876/image_1920?unique=a52bf0e

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 1"; DN 25mm; pressure range 0-40bar; length 90mm; operating time 10s; voltage 24VAC/DC; NC-accumulator for safety position

3.785,00 zł 3785.0 PLN 3.785,00 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of brass BA080-10-B
    BA080-10-B x 1.0
    Ball valve made of brass BA080-10-B
    Ball valve made of brass Series BA080-B; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 90mm; Flange ISO5211 F03; Square 9mm
    Add to Cart
    Electrical actuator VB030-L-AKKU
    VB030-L-AKKU x 1.0
    Electrical actuator VB030-L-AKKU
    Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Function NC
