BA080-10-D2

BA080-10-D2

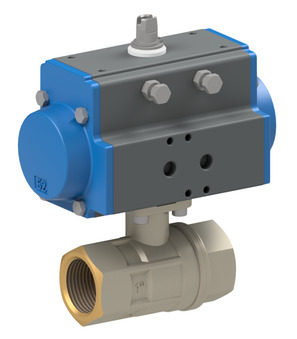

Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.823 Kg
Short Itemnumber: BA08010D2
https://www.stasto.pl/web/image/product.template/213384/image_1920?unique=3970b0b

ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 90mm; actuator PAD052

1.333,20 zł 1333.2 PLN 1.333,20 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 1"
DN 25 mm
Length 90 mm
pressure
Pressure range 0...40 bar
characteristics
Actuator PAD052
Ball valve made of brass BA080-10-B
BA080-10-B x 1.0
Ball valve made of brass BA080-10-B
Ball valve made of brass Series BA080-B; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 90mm; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
