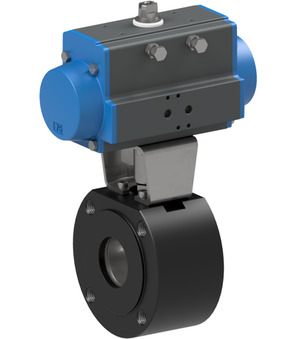

Flanged ball valve with pneumatic actuator BA079-80-D0

Price:

5.521,60 zł

Home
Search
⁰
Wishlist
Account

Flanged ball valve with pneumatic actuator Series BA079-D Store

Flanged ball valve with pneumatic actuator BA079-80-D0

Flanged ball valve with pneumatic actuator BA079-80-D0

Flanged ball valve with pneumatic actuator Series BA079-D; For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 80mm; Length 122mm; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 26.78 Kg
Short Itemnumber:BA07980D0

flanged ball valve with pneumatic actuator series BA079-D; for steam; flange PN16; body steel; ball AISI 304; seals PTFE-graphite/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 80mm; length 122mm; actuator PAD100

5.521,60 zł 5521.6 PLN 5.521,60 zł

DN
- 80 mm
Length
- 122 mm
Actuator
- PAD100

This combination does not exist.

Availability:

Adaugă în coș

dimension
DN	80 mm
Length	122 mm
characteristics
Actuator	PAD100

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Flanged ball valve with pneumatic actuator Series BA079-D_EN.pdf

Datové listy

1

Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA079-D_CS.pdf

Data Sheets

1

Datablad_Flangekugleventil med pneumatisk drejedrev Serie BA079-D_DA_DK.pdf

Datenblätter

1

Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA079-D_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA079-D_EL_GR.pdf

Data Sheets

1

Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BA079-D_ES.pdf

Data Sheets

1

Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA079-D_FI.pdf

Data Sheets

1

Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BA079-D_FR.pdf

Data Sheets

1

Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA079-D_HR.pdf

Adatlapok

1

Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA079-D_HU.pdf

Data Sheets

1

Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BA079-D_IT.pdf

Data Sheets

1

Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BA079-D_NB_NO.pdf

Data Sheets

1

Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BA079-D_NL.pdf

Karty katalogowe

1

Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA079-D_PL.pdf

Data Sheets

1

Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BA079-D_RO.pdf

Podatkovni listi

1

Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA079-D_SL.pdf

Data Sheets

1

Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA079-D_SRLATIN.pdf

Data Sheets

1

Datablad_Flänskulventil med pneumatiskt vriddon Serie BA079-D_SV.pdf

Flanged ball valve BA079-80-L-A

BA079-80-L-A x 1.0

Flanged ball valve BA079-80-L-A

Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 80mm; Length 122mm

Pneumatic actuator PAD100

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

RI3003 x 1.0

RI3003

Mounting bracket; F07/F07; 17-14

Accessories

dimension
DN	80 mm
Length	122 mm
characteristics
Actuator	PAD100

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Flanged ball valve with pneumatic actuator Series BA079-D_EN.pdf

Datové listy

1

Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA079-D_CS.pdf

Data Sheets

1

Datablad_Flangekugleventil med pneumatisk drejedrev Serie BA079-D_DA_DK.pdf

Datenblätter

1

Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA079-D_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA079-D_EL_GR.pdf

Data Sheets

1

Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BA079-D_ES.pdf

Data Sheets

1

Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA079-D_FI.pdf

Data Sheets

1

Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BA079-D_FR.pdf

Data Sheets

1

Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA079-D_HR.pdf

Adatlapok

1

Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA079-D_HU.pdf

Data Sheets

1

Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BA079-D_IT.pdf

Data Sheets

1

Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BA079-D_NB_NO.pdf

Data Sheets

1

Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BA079-D_NL.pdf

Karty katalogowe

1

Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA079-D_PL.pdf

Data Sheets

1

Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BA079-D_RO.pdf

Podatkovni listi

1

Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA079-D_SL.pdf

Data Sheets

1

Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA079-D_SRLATIN.pdf

Data Sheets

1

Datablad_Flänskulventil med pneumatiskt vriddon Serie BA079-D_SV.pdf

Flanged ball valve BA079-80-L-A

BA079-80-L-A x 1.0

Flanged ball valve BA079-80-L-A

Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 80mm; Length 122mm

Pneumatic actuator PAD100

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

RI3003 x 1.0

RI3003

Mounting bracket; F07/F07; 17-14
