BA079-40-D0

Name: BA079-40-D0
Brand: STASTO
SKU: BA079-40-D0
Price: 2755.7 PLN
Availability: InStock

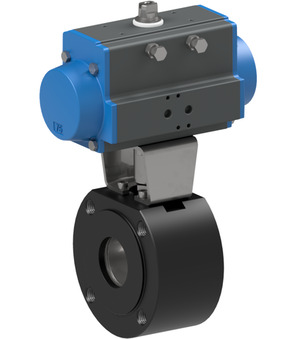

Flanged ball valve with pneumatic actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator; Control pressure 5,5...8bar; Steam applications Max. 15bar/198°C; Nominal diameter 40mm; Length 63,5mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.08 Kg
Short Itemnumber: BA07940D0

flanged ball valve with pneumatic actuator; flange PN16; body steel; ball AISI 304; seals PTFE-graphite/FKM; double acting actuator; control pressure 5,5...8bar; steam applications max. 15bar/198°C; nominal diameter 40mm; length 63,5mm; actuator PAD063

2.755,70 zł 2755.7 PLN 2.755,70 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA079-40-L-A x 1.0

Flanged ball valve BA079-40-L-A

Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 40mm; Length 63,5mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

RI3002 x 1.0
