BA079-25-S0

Name: BA079-25-S0
Brand: STASTO
SKU: BA079-25-S0
Price: 2962.1 PLN
Availability: InStock

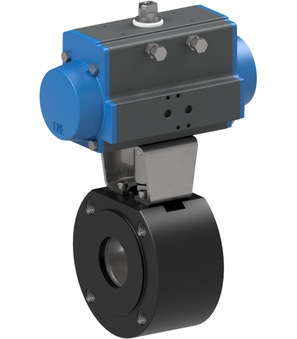

Flanged ball valve with pneumatic actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Steam applications Max. 15bar/198°C; Nominal diameter 25mm; Length 46mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.36 Kg
Short Itemnumber: BA07925S0

flanged ball valve with pneumatic actuator; flange PN16; body steel; ball AISI 304; seals PTFE-graphite/FKM; single acting actuator; control pressure 5,5...8bar; steam applications max. 15bar/198°C; nominal diameter 25mm; length 46mm; actuator PAS0855

2.962,10 zł 2962.1 PLN 2.962,10 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA079-25-L-A x 1.0

Flanged ball valve BA079-25-L-A

Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3001 x 1.0
