BA079-100-0L

BA079-100-0L

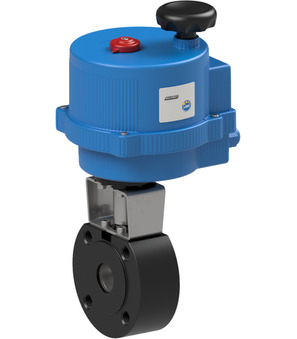

Flanged ball valve with electrical actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; DN 100mm; Length 152mm; Operating time 27s; Voltage 24V50-60Hz/DC; Steam applications Max. 15bar/198°C

Intrastat No.: 84818081
Country of origin: Italy
Weight: 40.66 Kg
Short Itemnumber: BA0791000L
https://www.stasto.pl/web/image/product.template/153151/image_1920?unique=0e064cb

flanged ball valve with electrical actuator; flange PN16; body steel; ball AISI 304; seals PTFE-graphite/FKM; DN 100mm; length 152mm; operating time 27s; voltage 24V50-60Hz/DC; steam applications max. 15bar/198°C

8.797,80 zł 8797.8 PLN 8.797,80 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Brand STASTO
Brand STASTO
Flanged ball valve BA079-100-L-A
BA079-100-L-A x 1.0 Pcs
Flanged ball valve BA079-100-L-A
Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 100mm; Length 152mm
Electrical actuator VB190-L
VB190-L x 1.0 Pcs
Electrical actuator VB190-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
RI3004 x 1.0 Pcs
RI3004
Mounting bracket For Ball valve; F10/F07-F10; Bolt 17-18
