Ball valve with pneumatic actuator Series BA078-D0B/D01-A Store

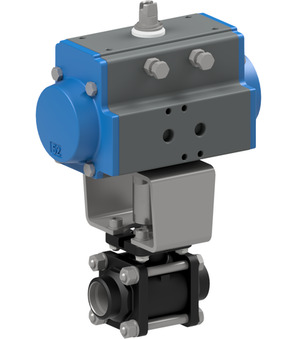

Ball valve with pneumatic actuator BA078-80-D0-A-01

Name: Ball valve with pneumatic actuator BA078-80-D0-A-01
Brand: STASTO
SKU: BA078-80-D0-A-01
Price: 6453.9 PLN
Availability: InStock

Ball valve with pneumatic actuator Series BA078-D0B/D01-A; ATEX II 2 G/D; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Nominal diameter 80mm; Pressure range Steam 0…15bar; Length 180mm; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 19.12 Kg
Short Itemnumber:BA07880D0A01

ball valve with pneumatic actuator series BA078-D0B/D01-A; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 80mm; pressure range steam 0…15bar; length 180mm; actuator PAD100

6.453,90 zł 6453.9 PLN 6.453,90 zł

DN
- 80 mm
Length
- 180 mm
Design
- ATEX
Pressure range
- 0...16 bar
Pressure range Steam
- 0...15 bar
Actuator
- PAD100

This combination does not exist.

Availability:

Adaugă în coș

dimension
DN	80 mm
Length	180 mm
design
Design	ATEX
pressure
Pressure range	0...16 bar
Pressure range Steam	0...15 bar
characteristics
Actuator	PAD100

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Data Sheets

Data sheet_Ball valve with pneumatic actuator Series BA078-D0B/D01-A_EN.pdf

Download

ZIP

Datové listy

Datový list_kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01-A_CS.pdf

Download

ZIP

Datenblätter

Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01-A_DE.pdf

Download

ZIP

Adatlapok

Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01-A_HU.pdf

Download

ZIP

Karty katalogowe

Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01-A_PL.pdf

Download

ZIP

Podatkovni listi

Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01-A_SL.pdf

Download

ZIP

Data Sheets

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01-A_SRLATIN.pdf

Download

BA078-80-L-A x 1.0

Ball valve made of steel 80-180

Ball valve made of steel Series BA078-L-A; For steam; ATEX II 2 D/G; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 80mm; Length 180mm

Add to Cart

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart

RI3003 x 1.0
