BA078-40-S2

BA078-40-S2

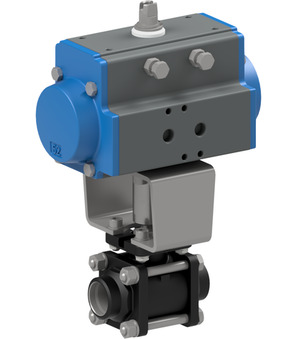

Ball valve with pneumatic actuator; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -10...+198°C; Nominal diameter 40mm; Pressure range Steam 0-15bar; Length 116mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.56 Kg
Short Itemnumber: BA07840S2
https://www.stasto.pl/web/image/product.template/162775/image_1920?unique=17f38fb

ball valve with pneumatic actuator; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; medium temperature -10...+198°C; nominal diameter 40mm; pressure range steam 0-15bar; length 116mm; actuator PAS1155

4.254,40 zł 4254.4 PLN 4.254,40 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0-15bar
Brand STASTO
Pressure range Steam 0-15bar
Brand STASTO
Ball valve made of steel 40-116
BA078-40-L x 1.0 Pcs
Ball valve made of steel 40-116
Ball valve made of steel Series BA078-L; For steam; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 40mm; Length 116mm
Pneumatic actuator PAS1153
PAS1153 x 1.0 Pcs
Pneumatic actuator PAS1153
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 60,8Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
Silencer SLN-M14-RB
SLN-M14-RB x 1.0 Pcs
Silencer SLN-M14-RB
Silencer Series SLN-RB; Sinterbronze; Thread Steel copper plated; Operating pressure Max. 16bar; Connection 1/4"; Length 28mm
