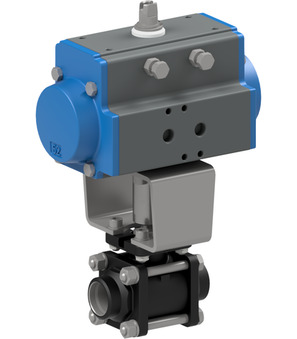

Ball valve with pneumatic actuator BA078-100-D0-A-01

Ball valve with pneumatic actuator BA078-100-D0-A-01

Ball valve with pneumatic actuator Series BA078-D0B/D01-A; ATEX II 2 G/D; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Nominal diameter 100mm; Pressure range Steam 0…15bar; Length 217mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy
Weight: 32.12 Kg
Short Itemnumber:BA078100D0A01
https://www.stasto.pl/web/image/product.template/138717/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA078-D0B/D01-A; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 100mm; pressure range steam 0…15bar; length 217mm; actuator PAD115

10.218,60 zł 10218.6 PLN 10.218,60 zł

cena na zapytanie

  • DN
  • Length
  • Design
  • Pressure range
  • Pressure range Steam
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 100 mm
Length 217 mm
design
Design ATEX
pressure
Pressure range 0...16 bar
Pressure range Steam 0...15 bar
characteristics
Actuator PAD115

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA078-D0B/D01-A_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01-A_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01-A_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01-A_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01-A_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01-A_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01-A_SRLATIN.pdf
Download
Ball valve made of steel 100-217
BA078-100-L-A x 1.0
Ball valve made of steel 100-217
Ball valve made of steel Series BA078-L-A; For steam; ATEX II 2 D/G; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 100mm; Length 217mm
Add to Cart
Pneumatic actuator PAD115
PAD115 x 1.0
Pneumatic actuator PAD115
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
