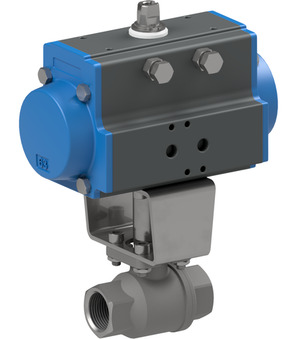

Ball valve with pneumatic actuator BA069-20-S0

Ball valve with pneumatic actuator BA069-20-S0

Ball valve with pneumatic actuator Series BA069; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...64bar; Length 131mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 15.31 Kg
Short Itemnumber: BA06920S0
https://www.stasto.pl/web/image/product.template/137173/image_1920?unique=d79ab69

ball valve with pneumatic actuator series BA069; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0...64bar; length 131mm; actuator PAS1155

4.392,50 zł 4392.5 PLN 4.392,50 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 2"
DN 50 mm
Length 131 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread RP 2"
DN 50 mm
Length 131 mm

BA069-20-S0

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

2

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
700000-2"
700000-2" x 1.0 Pcs
700000-2"
Ball valve made of stainless steel; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection RP 2"; Nominal diameter 50mm; Pressure range 0-64bar; Length 131mm
Pneumatic actuator PAS1155
PAS1155 x 1.0 Pcs
Pneumatic actuator PAS1155
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
