BA069-12-S0

BA069-12-S0

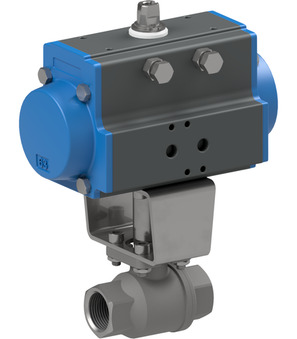

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0..140bar; length 66mm; actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.72 Kg
Short Itemnumber:BA06912S0
https://www.stasto.pl/web/image/product.template/171494/image_1920?unique=3970b0b

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0..140bar; length 66mm; actuator PAS0525

1.425,60 zł 1425.6 PLN 1.425,60 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of stainless steel BA069-12-L
    BA069-12-L x 1.0
    Ball valve made of stainless steel BA069-12-L
    Ball valve made of stainless steel Series BA069; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0…140bar; Length 66mm
    Add to Cart
    Pneumatic actuator PAS0525
    PAS0525 x 1.0
    Pneumatic actuator PAS0525
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
