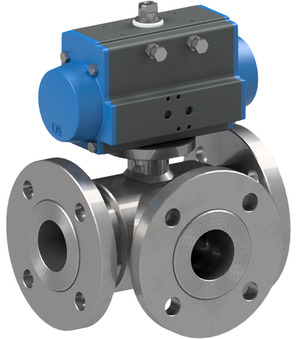

BA056-80-D0-ABS51-C001-03-C002-31-6
  2. STASTO Store
  3. BA056-80-D0-ABS51-C001-03-C002-31-6
Flanged ball valve with pneumatic actuator BA056-80-D0
Flanged ball valve with pneumatic actuator BA056-80-D0
23.251,80 zł
23.251,80 zł
BA056-80-D0-ABS51-C001-03-C002-31-LV-2
BA056-80-D0-ABS51-C001-03-C002-31-LV-2
23.922,80 zł
23.922,80 zł

BA056-80-D0-ABS51-C001-03-C002-31-6

BA056-80-D0
Flanged ball valve with pneumatic actuator Series BA055, BA056; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 260mm; Pressure range 0…16bar; Flange PN16; Actuator PAD100; Ball T
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 38.25 Kg
Short Itemnumber:BA05680D0ABS51C00103C002316
https://www.stasto.pl/web/image/product.template/202884/image_1920?unique=3970b0b

BA056-80-D0
flanged ball valve with pneumatic actuator series BA055, BA056; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; length 260mm; pressure range 0…16bar; flange PN16; actuator PAD100; ball T
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

23.899,00 zł 23899.0 PLN 23.899,00 zł

cena na zapytanie

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 80 mm
Length 260 mm
Flange PN16
Designs
Connector size 22
Ball T
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...16 bar
characteristics
Coil C001
Actuator PAD100
