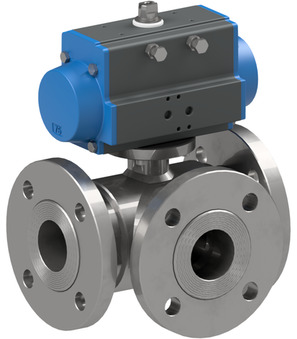

Flanged ball valve with pneumatic actuator BA055-65-D0

Flanged ball valve with pneumatic actuator BA055-65-D0

Flanged ball valve with pneumatic actuator Series BA055, BA056; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 240mm; Pressure range 0…16bar; Flange PN16; Actuator PAD085; Ball L

Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA055, BA056
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 28.37 Kg
Short Itemnumber: BA05565D0
https://www.stasto.pl/web/image/product.template/146963/image_1920?unique=a9dccc9

flanged ball valve with pneumatic actuator series BA055, BA056; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; length 240mm; pressure range 0…16bar; flange PN16; actuator PAD085; ball L

14.563,60 zł 14563.6 PLN 14.563,60 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 65 mm
Length 240 mm
Flange PN16
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 65 mm
Length 240 mm
Flange PN16
Ball L
Brand STASTO

BA055-65-D0

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve BA055-65-B
BA055-65-B x 1.0 Pcs
Flanged ball valve BA055-65-B
Flanged ball valve Series BA055, BA056; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 65mm; DN ball 65mm; Pressure range 0...16bar; Flange PN16; Length 240mm; Ball L; Flange ISO5211 F07; Square 17mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
IV/00291/24 x 1.0 Pcs
IV/00291/24
Bolt; 1.4305; Diameter 30mm; Height of the bolt 58mm; Male square 17mm; Height of the male square 19mm; Female square 17mm; Height of the female square 17mm
