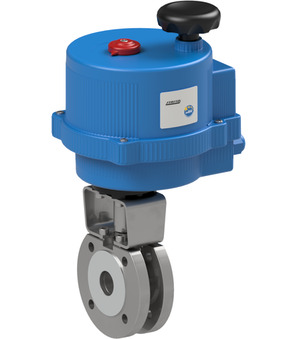

Flanged ball valve with electrical actuator BA052-25-0H

Flanged ball valve with electrical actuator BA052-25-0H

Flanged ball valve with electrical actuator SeriesBA052; Flange PN40; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 25mm; Pressure range 0-40bar; Length 46mm; Operating time 8s; Voltage 100-240VAC

Flanschkugelhahn mit Elektroantrieb Serie 8E005
Flanschkugelhahn mit Elektroantrieb Serie 8E005
Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.69 Kg
Short Itemnumber: BA052250H
https://www.stasto.pl/web/image/product.template/179682/image_1920?unique=6e70755

flanged ball valve with electrical actuator seriesBA052; flange PN40; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; DN 25mm; pressure range 0-40bar; length 46mm; operating time 8s; voltage 100-240VAC

4.335,80 zł 4335.8 PLN 4.335,80 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 25 mm
Length 46 mm
Operating time 8 s
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 25 mm
Length 46 mm
Operating time 8 s
Voltage 100-240VAC

BA052-25-0H

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA052-25-L
BA052-25-L x 1.0 Pcs
Flanged ball valve BA052-25-L
Flanged ball valve Series BA052; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm
RI3001 x 1.0 Pcs
RI3001
Mounting bracket; F05/F03-F04; 11-8
Electrical actuator VB030-H
VB030-H x 1.0 Pcs
Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
Accessory Products
Flanged ball valve 721000-25
721000-25
Flanged ball valve 721000-25
DN
25 mm
Flange
PN16
Pressure range
0...16 bar
BA820-25-L
BA820-25-L
Brand
STASTO
