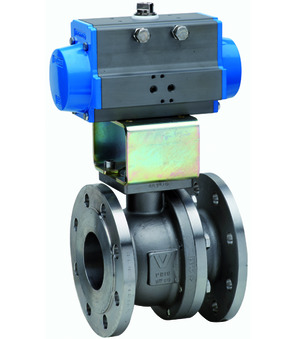

Flanged ball valve with pneumatic actuator BA051-80-S0-A-02

Flanged ball valve with pneumatic actuator BA051-80-S0-A-02

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0...16bar; flange PN16; length 180mm; actuator PAS1255; V-ball 30/60°

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 36.54 Kg
Short Itemnumber: BA05180S0A02
https://www.stasto.pl/web/image/product.template/221345/image_1920?unique=7d94123

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0...16bar; flange PN16; length 180mm; actuator PAS1255; V-ball 30/60°

12.626,70 zł 12626.7 PLN 12.626,70 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
Design ATEX

BA051-80-S0-A-02

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
RI3528 x 1.0 Pcs
RI3528
Mounting bracket; F10/F07-F10; Bolt 22-18
