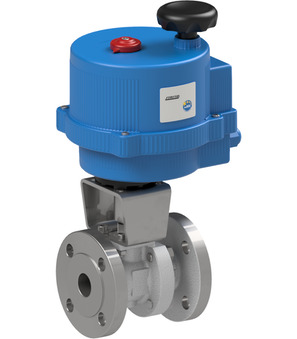

Flanged ball valve with electrical actuator BA051-32-CL

Name: Flanged ball valve with electrical actuator BA051-32-CL
Brand: STASTO
SKU: BA051-32-CL
Price: 6543.7 PLN
Availability: InStock

flanged ball valve with electrical actuator series 8E053; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; DN 32mm; pressure range 0-40bar; flange PN40; length 130mm; operating time; positioner 4-20mA/0-10V; torque 60Nm; 9s; voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.4 Kg
Short Itemnumber: BA05132CL

6.543,70 zł 6543.7 PLN 6.543,70 zł

DN
- 32 mm
Length
- 130 mm
Flange
- PN40
Voltage
- 24VAC/DC
Pressure range
- 0...40 bar
Actuator
- VB060L
Operating time
- 9 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	32 mm
Length	130 mm
Flange	PN40
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...40 bar
characteristics
Actuator	VB060L
Operating time	9 s

760000-32 x 1.0

Flanged ball valve 760000-32

Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 32mm; Pressure range 0-40bar; Flange PN40; Length 130mm

Add to Cart

VB060-RE9-Q14 x 1.0

VB060-RE9-Q14

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-star 14mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3525 x 1.0
