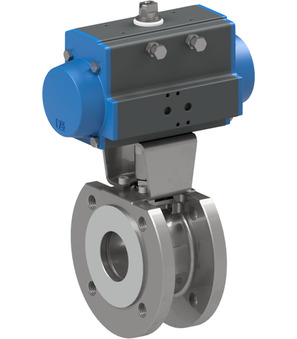

Flanged ball valve with pneumatic actuator BA049-32-D0-3C

Name: Flanged ball valve with pneumatic actuator BA049-32-D0-3C
Brand: STASTO
SKU: BA049-32-D0-3C
Price: 2911.5 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA049-D0-3C; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 32mm; Length 54mm; Actuator PAD052; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.68 Kg
Short Itemnumber: BA04932D03C

flanged ball valve with pneumatic actuator series BA049-D0-3C; flange PN16; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 32mm; length 54mm; actuator PAD052; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

2.911,50 zł 2911.5 PLN 2.911,50 zł

DN
- 32 mm
Length
- 54 mm
Pressure range
- 0...16 bar
Actuator
- PAD052

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	32 mm
Length	54 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAD052

BA049-32-L-3C x 1.0

Flanged ball valve BA049-32-L-3C

Flanged ball valve Series BA049; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 32mm; Length 54mm

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart

RI3008 x 1.0
