BA048-25-D0

Name: BA048-25-D0
Brand: STASTO
SKU: BA048-25-D0
Price: 2477.6 PLN
Availability: InStock

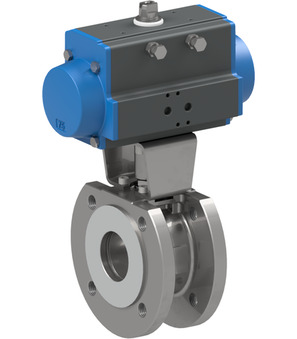

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.59 Kg
Short Itemnumber: BA04825D0

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; actuator PAD052

2.477,60 zł 2477.6 PLN 2.477,60 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA048-25-L x 1.0

Flanged ball valve BA048-25-L

Flanged ball valve Series BA048-L; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart

RI3001 x 1.0
