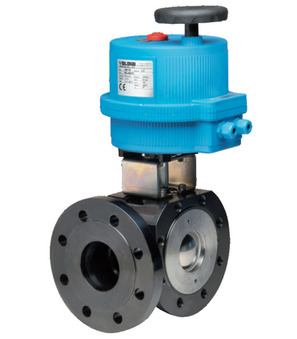

Ball valve with electrical actuator BA047-125-0L

Ball valve with electrical actuator BA047-125-0L

Ball valve with electrical actuator Series BA046, BA047; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 125mm; DN ball 100mm; Length 196mm; Operating time 27s; Voltage 24VAC/DC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 167.74 Kg
Short Itemnumber: BA0471250L
https://www.stasto.pl/web/image/product.template/131768/image_1920?unique=c934435

ball valve with electrical actuator series BA046, BA047; 3-way-type; sealing on two sides; pressure inlet just in front; reduced bore; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; pressure range 0...16bar; medium temperature -10...+160°C; nominal diameter 125mm; DN ball 100mm; length 196mm; operating time 27s; voltage 24VAC/DC; ball T

23.981,30 zł 23981.3 PLN 23.981,30 zł

cena na zapytanie

excl. tax
  • DN
  • Length
  • DN ball
  • Ball
  • Voltage
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 125 mm
DN ball 100 mm
Length 196 mm
All specifications (7)
Pressure range 0...16bar
DN 125 mm
DN ball 100 mm
Length 196 mm
Operating time 27 s
Voltage 24VAC/DC
Ball T
Flanged ball valve BA047-125-L
BA047-125-L x 1.0 Pcs
Flanged ball valve BA047-125-L
Flanged ball valve Series BA046, BA047; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 125mm; DN ball 100mm; Length 196mm; Ball T
Electrical actuator VB190-L
VB190-L x 1.0 Pcs
Electrical actuator VB190-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
RI4558 x 1.0 Pcs
RI4558
Mounting bracket; F10-F?; Bolt 17-18
