Flanged ball valve with pneumatic actuator Series BA045-S Store

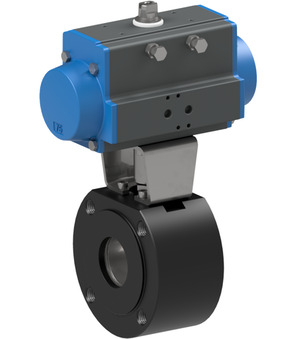

Flanged ball valve with pneumatic actuator BA045-32-S0

Name: Flanged ball valve with pneumatic actuator BA045-32-S0
Brand: STASTO
SKU: BA045-32-S0
Price: 2918.1 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA045-S0; Flange PN40; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar; Nominal diameter 32mm; Length 54mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.31 Kg
Short Itemnumber: BA04532S0

flanged ball valve with pneumatic actuator series BA045-S0; flange PN40; body steel; ball AISI 304; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 32mm; length 54mm; actuator PAS0855

2.918,10 zł 2918.1 PLN 2.918,10 zł

Valve interface Namur
- -
DN
- 50 mm
Length
- 82 mm
Connector size
- -
Design
- -
Voltage
- -
Pressure range
- 0...16 bar
Coil
- -
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	82 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1005

BA045-32-L x 1.0

Flanged ball valve BA045-32-L

Flanged ball valve Series BA045; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 32mm; DN ball 54mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3030 x 1.0
