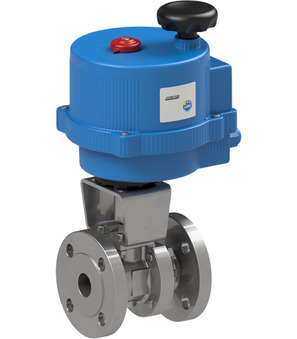

Flanged ball valve with electrical actuator BA044-150-0C-01

Name: Flanged ball valve with electrical actuator BA044-150-0C-01
Brand: STASTO
SKU: BA044-150-0C-01

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Operating time 43s; Voltage 230VAC; Electrical actuator With SIL 2

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA0441500C01

flanged ball valve with electrical actuator series 8E054; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals PTFE/Graphoil/FKM; medium temperature -10...+160°C; DN 150mm; pressure range 0-16bar; flange PN16; length 350mm; operating time 43s; voltage 230VAC; electrical actuator with SIL 2

On request

DN
- 150 mm
Length
- 350 mm
Flange
- PN16
Voltage
- 100-240VAC
Pressure range
- 0...16 bar
Actuator
- VB350H
Operating time
- 50 s
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16 bar
DN	150 mm
Flange	PN16
Length	350 mm

All specifications (7)

Specifications
Spare Parts

Pressure range	0...16 bar
DN	150 mm
Flange	PN16
Length	350 mm
Operating time	50 s
Voltage	100-240VAC
Brand	STASTO

760001-150 x 1.0 Pcs

Flanged ball valve 760001-150

Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm

PSQ503-CC43-Q22-01 x 1.0 Pcs

PSQ503-CC43-Q22-01

Electrical actuator; Suitable for Valves with 90° operation; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 500Nm; Operating time 43s; Flange ISO5211-F10; Square diagonal 22mm; Voltage 230V-50/60Hz; Protection class IP67; With SIL2

RI3553 x 1.0 Pcs
