BA044-125-0H-U

BA044-125-0H-U

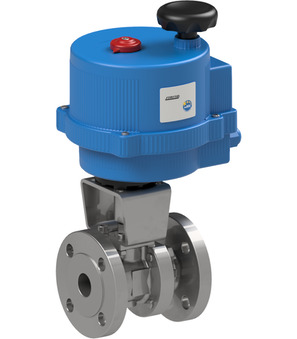

Flanged ball valve with electrical actuator; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 125mm; Pressure range 0-16bar; Flange PN16; Length 325mm; Operating time 50s; Voltage 100-240VAC; UL-Approval

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 56.06 Kg
Short Itemnumber: BA0441250HU
https://www.stasto.pl/web/image/product.template/135695/image_1920?unique=f96ddcc

flanged ball valve with electrical actuator; length according to EN558−1 R27; body zinc plated steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; DN 125mm; pressure range 0-16bar; flange PN16; length 325mm; operating time 50s; voltage 100-240VAC; UL-approval

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Pressure range 0-16bar
Brand STASTO
Flanged ball valve 760001-125
760001-125 x 1.0 Pcs
Flanged ball valve 760001-125
Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 125mm; Pressure range 0-16bar; Flange PN16; Length 325mm
VB270-H-UL
VB270-H-UL x 1.0 Pcs
VB270-H-UL
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 270Nm; Operating time 50s; Flange ISO5211 F07/F10-star 22mm; Voltage 100-240VAC; Protection class IP67; UL-Approval
RI3528 x 1.0 Pcs
RI3528
Mounting bracket; F10/F07-F10; Bolt 22-18
