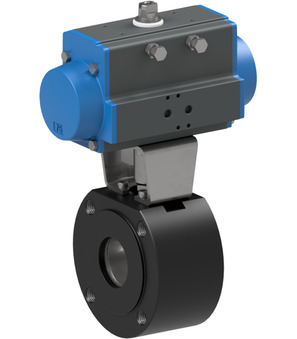

Flanged ball valve with pneumatic actuator BA043-50-D0-A

Flanged ball valve with pneumatic actuator BA043-50-D0-A

Flanged ball valve with pneumatic actuator Series BA043-A; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy

Weight: 12.01 Kg
Short Itemnumber: BA04350D0A

flanged ball valve with pneumatic actuator series BA043-A; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator PAD075

On request

DN
- 50 mm
Length
- 82 mm
Design
- ATEX
Actuator
- PAD075

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16bar
DN	50 mm
Length	82 mm
Design	ATEX

Data sheets, drawings and CAD files

Pressure range	0...16bar
DN	50 mm
Length	82 mm
Design	ATEX

BA043-50-D0-A

Documents

1 Documents

English

Declarations of Conformity

1

PDF
Druckluftdrehantrieb · EN
ATEX - certificate 32 KB Updated 13/06/2026

View Download

Flanged ball valve BA043-50-L-A

BA043-50-L-A x 1.0 Pcs

Flanged ball valve BA043-50-L-A

Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm

Pneumatic actuator PAD075

PAD075 x 1.0 Pcs

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

RI3009 x 1.0 Pcs

RI3009

Mounting bracket; F07/F05-F05; Bolt 17-10

Accessory Products

EB0X01

Material of case: Plastic

Brand: STASTO

EB0X02

Material of case: Plastic

Brand: STASTO

EB0X04YA

Material of case: Aluminum

Brand: STASTO

EB0X04YA-ULCSA-01

EB0X04YA-ULCSA-01

Material of case: Aluminum

Brand: STASTO

EB0X05

Design: ATEX

Material of case: Plastic

Brand: STASTO

RI4605

Diameter: 75 mm

RI4619

Diameter: 75 mm

RI4647

Diameter: 75 mm
