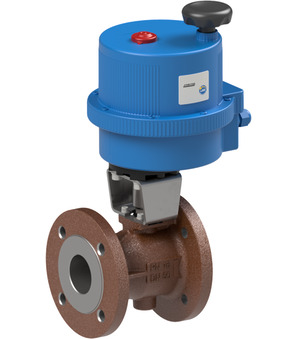

Flanged ball valve with electrical actuator BA040-65-QH

Price:

6.360,20 zł
Flanged ball valve with electrical actuator Series BA040 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with electrical actuator Series BA040
  6. BA040-65-QH
Flanged ball valve with electrical actuator BA040-65-QH
  2. STASTO Store
  3. Flanged ball valve with electrical actuator BA040-65-QH
Flanged ball valve with electrical actuator BA040-65-0L
Flanged ball valve with electrical actuator BA040-65-0L
5.153,70 zł
5.153,70 zł
Flanged ball valve with electrical actuator BA040-80-0L
Flanged ball valve with electrical actuator BA040-80-0L
5.409,40 zł
5.409,40 zł

Flanged ball valve with electrical actuator BA040-65-QH

Flanged ball valve with electrical actuator Series BA040; Length According to EN558−1R24; Flansch PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Medium temperature -10...+120°C; Pressure range 0…16bar; DN 65mm; Length 170mm; Operating time 27s; Voltage 100-240VAC; NO-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.06 Kg
Short Itemnumber:BA04065QH
https://www.stasto.pl/web/image/product.template/216263/image_1920?unique=186ae6e

flanged ball valve with electrical actuator series BA040; length according to EN558−1R24; Flansch PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; medium temperature -10...+120°C; pressure range 0…16bar; DN 65mm; length 170mm; operating time 27s; voltage 100-240VAC; NO-accumulator for safety position

6.360,20 zł 6360.2 PLN 6.360,20 zł

cena na zapytanie

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 65 mm
Length 170 mm
Electrical key figures
Voltage 24VAC/DC
characteristics
Actuator VB110L
Operating time 27 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series BA040_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Flanged ball valve with electrical actuator Series BA040_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s elektropohonem série BA040_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout - přírubový, s elektropohonem série BA040_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Elektroantrieb Serie BA040_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Flanschkugelhahn mit Elektroantrieb Serie BA040_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett karimás gömbcsap sorozat BA040_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett karimás gömbcsap sorozat BA040_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem elektrycznym Seria BA040_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy kołnierzowy z napędem elektrycznym Seria BA040_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Prirobnična krogelna pipa z električnim pogonom serija BA040_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije BA040_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije BA040_SRLATIN.pdf
Download
BA040-65-L-01 x 1.0
Flanged ball valve BA040-65-L-01
Flanged ball valve Series BA040-L-F; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 65mm; Length 170mm; Length EN558-1R14; Flange ISO5211 F07
Add to Cart
VB110-H-AKKU-N0 x 1.0
Electrical actuator VB110-H-AKKU-N0
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100...240VAC; Function NO
Add to Cart
