BA040-100-D0-01

Name: BA040-100-D0-01
Brand: STASTO
SKU: BA040-100-D0-01
Price: 5635.1 PLN
Availability: InStock

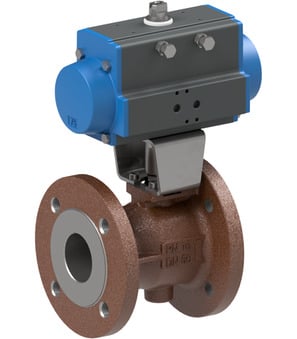

Flanged ball valve with pneumatic actuator; Length According to EN558−1 R14; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 190mm; Actuator PAD100; Incl. 5/2-way pilot valve ABS51; Coil SCN-230V/50Hz; Without connector

Intrastat No.: 84818081
Country of origin: Italy
Weight: 30.99 Kg
Short Itemnumber: BA040100D001

flanged ball valve with pneumatic actuator; length according to EN558−1 R14; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 100mm; length 190mm; actuator PAD100; incl. 5/2-way pilot valve ABS51; coil SCN-230V/50Hz; without connector

5.635,10 zł 5635.1 PLN 5.635,10 zł

excl. tax

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16bar
Brand	STASTO

Specifications
Spare Parts

Pressure range	0...16bar
Brand	STASTO

BA040-100-D0 x 1.0 Pcs

Flanged ball valve with pneumatic actuator BA040-100-D0

Flanged ball valve with pneumatic actuator Series BA040; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 190mm; Length EN558-1R14; Actuator PAD100

ABS51 x 1.0 Pcs

Mounted pilot valve ABS51

Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
