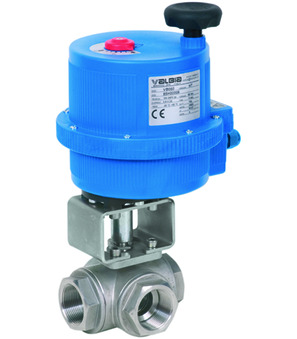

Ball valve with electrical actuator BA038-34-0L

Price:

3.961,30 zł
Ball valve with electrical actuator Series BA037, BA038 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with electrical actuator Series BA037, BA038
  6. BA038-34-0L
Ball valve with electrical actuator BA038-34-0L
  2. STASTO Store
  3. Ball valve with electrical actuator BA038-34-0L
Ball valve with electrical actuator BA037-12-0H
Ball valve with electrical actuator BA037-12-0H
3.093,60 zł
3.093,60 zł
Ball valve with electrical actuator BA038-34-0H
Ball valve with electrical actuator BA038-34-0H
4.231,00 zł
4.231,00 zł

Ball valve with electrical actuator BA038-34-0L

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 3/4"; DN 16mm; Pressure range 0...64bar; Length 86,6mm; Operating time 8s; Voltage 24VAC/DC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.89 Kg
Short Itemnumber:BA038340L
https://www.stasto.pl/web/image/product.template/152670/image_1920?unique=bbc91d7

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 3/4"; DN 16mm; pressure range 0...64bar; length 86,6mm; operating time 8s; voltage 24VAC/DC; ball T

3.961,30 zł 3961.3 PLN 3.961,30 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 16 mm
Length 86,6 mm
Designs
Ball T
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB030L
Operating time 8 s
Ball valve made of stainless steel BA038-34-L
BA038-34-L x 1.0
Ball valve made of stainless steel BA038-34-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 3/4"; Nominal diameter 16mm; Pressure range 0...64bar; Length 86mm; Ball T
Add to Cart
Electrical actuator VB030-L
VB030-L x 1.0
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
Add to Cart
dimension
Female thread G 3/4"
DN 16 mm
Length 86,6 mm
Designs
Ball T
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB030L
Operating time 8 s
Ball valve made of stainless steel BA038-34-L
BA038-34-L x 1.0
Ball valve made of stainless steel BA038-34-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 3/4"; Nominal diameter 16mm; Pressure range 0...64bar; Length 86mm; Ball T
Add to Cart
Electrical actuator VB030-L
VB030-L x 1.0
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
Add to Cart
