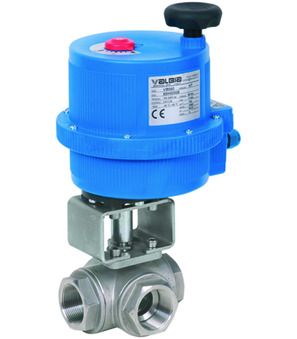

Ball valve with electrical actuator BA037-12-0L

Ball valve with electrical actuator BA037-12-0L

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 1/2"; DN 12,5mm; Pressure range 0...64bar; Length 75,7mm; Operating time 10s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.43 Kg
Short Itemnumber: BA037120L
https://www.stasto.pl/web/image/product.template/152649/image_1920?unique=b82de6b

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 1/2"; DN 12,5mm; pressure range 0...64bar; length 75,7mm; operating time 10s; voltage 24VAC/DC; ball L

2.818,60 zł 2818.6 PLN 2.818,60 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread G 1/2"
DN 12,5 mm
Length 75,7 mm
All specifications (7)
Pressure range 0...64 bar
Female thread G 1/2"
DN 12,5 mm
Length 75,7 mm
Operating time 10 s
Voltage 24VAC/DC
Ball L
Ball valve made of stainless steel BA037-12-L
BA037-12-L x 1.0 Pcs
Ball valve made of stainless steel BA037-12-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1/2"; Nominal diameter 12,5mm; Pressure range 0...64bar; Length 75,7mm; Ball L
Electrical actuator VB015-L-24
VB015-L-24 x 1.0 Pcs
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
RI3760 x 1.0 Pcs
RI3760
Mounting bracket; F03/F05-F04; Bolt 11-9
