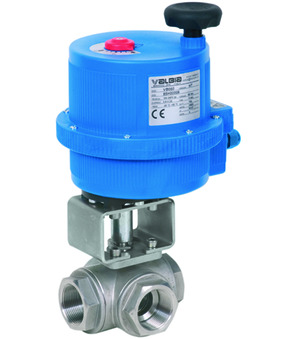

BA037-10-SP0L-01

Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball L

Electrical actuator; Suitable for Valves with 180° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 3 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 16s; Flange ISO5211 F03/F05-star 11mm; Voltage 24VAC/DC; Protection class IP67; Suitable for Central position

Mounting bracket; F07/F05-F05, Bolt 11-11
