BA036-30-D0-01

BA036-30-D0-01

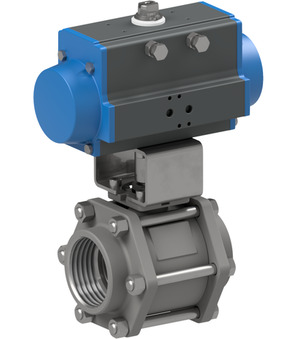

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; For steam Medium temperature -20...+198°C; RP 3"; Nominal diameter 80mm; Pressure range 0-15bar; Length 180mm; Actuator PAD085-H High temperature design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 17.48 Kg
Short Itemnumber: BA03630D001
https://www.stasto.pl/web/image/product.template/131563/image_1920?unique=c096d6d

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; for steam medium temperature -20...+198°C; RP 3"; nominal diameter 80mm; pressure range 0-15bar; length 180mm; actuator PAD085-H high temperature design

6.334,70 zł 6334.7 PLN 6.334,70 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA036-30-L
    BA036-30-L x 1.0
    Ball valve made of stainless steel BA036-30-L
    Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 3"; Nominal diameter 80mm; Length 180mm
    Add to Cart
    Pneumatic actuator PAD085-H
    PAD085-H x 1.0
    Pneumatic actuator PAD085-H
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
    Add to Cart
