BA036-10-T0

BA036-10-T0

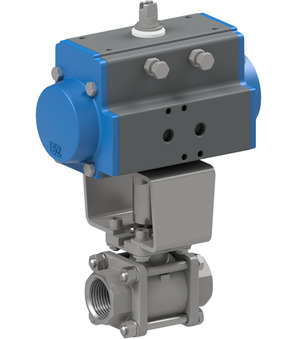

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; RP 1"; Nominal diameter 25mm; Length 92mm; Actuator PAS063; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.535 Kg
Short Itemnumber: BA03610T0
https://www.stasto.pl/web/image/product.template/150969/image_1920?unique=87f17bd

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; RP 1"; nominal diameter 25mm; length 92mm; actuator PAS063; safety position NO

2.185,50 zł 2185.5 PLN 2.185,50 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...15bar
Brand STASTO
Pressure range Steam 0...15bar
Brand STASTO
Ball valve made of stainless steel 710060-1"
710060-1" x 1.0 Pcs
Ball valve made of stainless steel 710060-1"
Ball valve made of stainless steel Series 710060; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 1"; Nominal diameter 25mm; Length 92mm
PAS0635-B
PAS0635-B x 1.0 Pcs
PAS0635-B
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3033 x 1.0 Pcs
RI3033
Mounting bracket; F05/F03-F04; Bolt 14-8
