BA035-32-S2

Name: BA035-32-S2
Brand: STASTO
SKU: BA035-32-S2

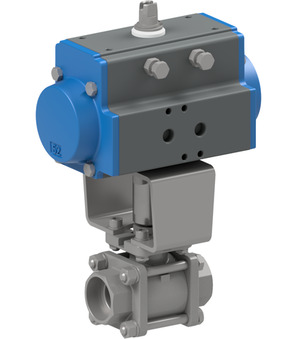

Ball valve with pneumatic actuator; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAS1151

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.93 Kg
Short Itemnumber: BA03532S2

ball valve with pneumatic actuator; socket weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0-25bar; length 106mm; actuator PAS1151

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

711000-32 x 1.0

Ball valve made of stainless steel 711000-32

Ball valve made of stainless steel Series 711000; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm

Add to Cart

PAS1151 x 1.0

Pneumatic actuator PAS1151

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 41Nm

Add to Cart

ATSV0704 x 1.0
