BA035-20-S2

BA035-20-S2

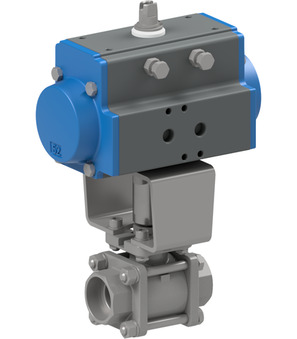

Ball valve with pneumatic actuator; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAS0853

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.86 Kg
Short Itemnumber: BA03520S2
https://www.stasto.pl/web/image/product.template/134848/image_1920?unique=01498ce

ball valve with pneumatic actuator; socket weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0853

2.378,60 zł 2378.6 PLN 2.378,60 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of stainless steel 711000-20
711000-20 x 1.0 Pcs
Ball valve made of stainless steel 711000-20
Ball valve made of stainless steel Series 711000; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm
Pneumatic actuator PAS0853
PAS0853 x 1.0 Pcs
Pneumatic actuator PAS0853
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 4 bar 21,3Nm
RI3783 x 1.0 Pcs
RI3783
Mounting bracket; F05/F03-F04,14-7
