BA034-32-S0

BA034-32-S0

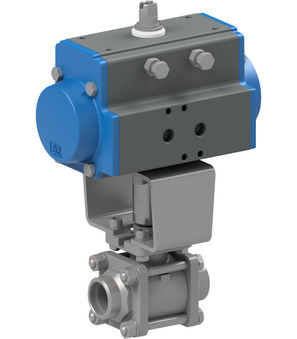

Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.05 Kg
Short Itemnumber: BA03432S0
https://www.stasto.pl/web/image/product.template/185243/image_1920?unique=3970b0b

ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0-25bar; length 106mm; actuator PAS0635

2.303,40 zł 2303.4 PLN 2.303,40 zł

cena na zapytanie

  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 32 mm
Length 106 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAS0635
Ball valve made of stainless steel 712000-32
712000-32 x 1.0
Ball valve made of stainless steel 712000-32
Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
