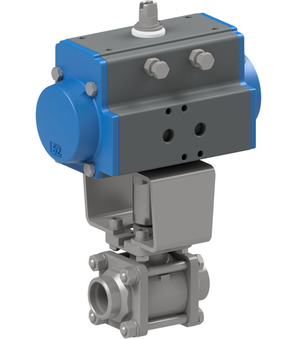

Ball valve with pneumatic actuator BA034-32-S0-3C

Ball valve with pneumatic actuator BA034-32-S0-3C

Ball valve with pneumatic actuator Series BA034-S0-3C; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals Fibre-glass-reinforced PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; Actuator PAS0635; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 4.02 Kg
Short Itemnumber: BA03432S03C
https://www.stasto.pl/web/image/product.template/184870/image_1920?unique=87fb56f

ball valve with pneumatic actuator series BA034-S0-3C; TA-Luft; butt weld ends; body, ball AISI 316; seals fibre-glass-reinforced PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAS0635; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

2.303,40 zł 2303.4 PLN 2.303,40 zł

cena na zapytanie

excl. tax
  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 32 mm
Length 106 mm
Design ATEX
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 32 mm
Length 106 mm
Design ATEX

BA034-32-S0-3C

Documents

1 Documents 3 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Ball valve made of stainless steel BA034-32-L-3C
BA034-32-L-3C x 1.0 Pcs
Ball valve made of stainless steel BA034-32-L-3C
Ball valve made of stainless steel Series BA034-L-3C; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 32mm; Pressure range 0…25bar; Length 106mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3033 x 1.0 Pcs
RI3033
Mounting bracket; F05/F03-F04; Bolt 14-8
