Ball valve with pneumatic actuator BA034-15-D0B-A

Price:

999.999,00 zł
Ball valve with pneumatic actuator Series BA034-D0-A Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA034-D0-A
  6. BA034-15-D0B-A
Ball valve with pneumatic actuator BA034-15-D0B-A
  2. STASTO Store
  3. Ball valve with pneumatic actuator BA034-15-D0B-A
BA034-50-D0-02-ABS55-PI16-06-14-N-0-360-C001-03-C002-31-6-EB0X01
BA034-50-D0-02-ABS55-PI16-06-14-N-0-360-C001-03-C002-31-6-EB0X01
cena na zapytanie
Ball valve with pneumatic actuator BA034-15-D0B-A-EB0X14
Ball valve with pneumatic actuator BA034-15-D0B-A-EB0X14
cena na zapytanie

Ball valve with pneumatic actuator BA034-15-D0B-A

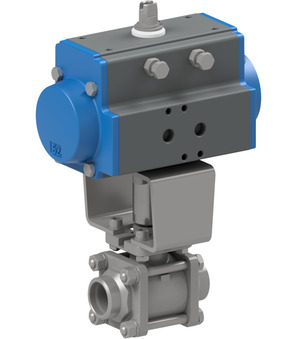

Ball valve with pneumatic actuator Series BA034-S0-A; ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.683 Kg
Short Itemnumber:BA03415D0BA
https://www.stasto.pl/web/image/product.template/213265/image_1920?unique=4357084

ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAD052

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 15 mm
Length 65 mm
design
Design ATEX
pressure
Pressure range 0...64 bar
characteristics
Actuator PAD052
Ball valve made of stainless steel BA034-15-L-A
BA034-15-L-A x 1.0
Ball valve made of stainless steel BA034-15-L-A
Ball valve made of stainless steel Series BA034-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
dimension
DN 15 mm
Length 65 mm
design
Design ATEX
pressure
Pressure range 0...64 bar
characteristics
Actuator PAD052
Ball valve made of stainless steel BA034-15-L-A
BA034-15-L-A x 1.0
Ball valve made of stainless steel BA034-15-L-A
Ball valve made of stainless steel Series BA034-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
