BA033-34-S2

Name: BA033-34-S2
Brand: STASTO
SKU: BA033-34-S2
Price: 3224.3 PLN
Availability: InStock

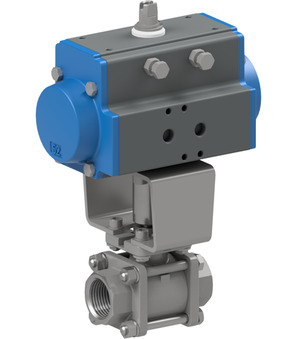

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS1003

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.45 Kg
Short Itemnumber: BA03334S2

3.224,30 zł 3224.3 PLN 3.224,30 zł

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

710000-3/4" x 1.0

Ball valve made of stainless steel 710000-3/4"

Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm

Add to Cart

PAS1003 x 1.0

Pneumatic actuator PAS1003

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 35,9Nm

Add to Cart

ATSV0704 x 1.0
