BA033-212-D0-01

BA033-212-D0-01

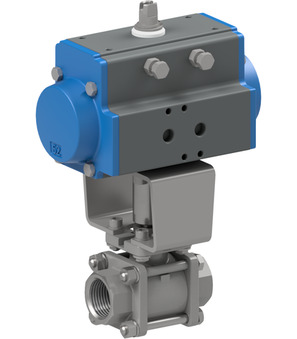

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085; Table height 120mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.73 Kg
Short Itemnumber: BA033212D001
https://www.stasto.pl/web/image/product.template/161958/image_1920?unique=33b4040

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085; Table height 120mm

5.855,10 zł 5855.1 PLN 5.855,10 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Pressure range 0-16bar
Brand STASTO
Ball valve made of stainless steel 710000-21/2"
710000-21/2" x 1.0 Pcs
Ball valve made of stainless steel 710000-21/2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
RI3003 x 2.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
A4/428/03 x 1.0 Pcs
A4/428/03
Bolt; 1.4305; Diameter 28mm; Height of the bolt 50mm; Male square 17mm; Height of the male square 19mm; Female square 17mm; Height of the female square 14mm
