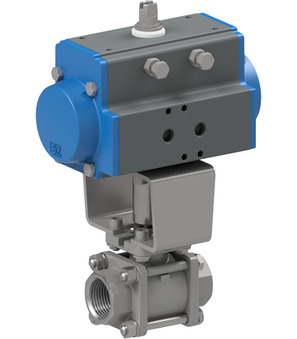

Ball valve with pneumatic actuator BA033-20-D2

Ball valve with pneumatic actuator BA033-20-D2

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.31 Kg
Short Itemnumber:BA03320D2
https://www.stasto.pl/web/image/product.template/178061/image_1920?unique=bbc91d7

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD085

3.282,40 zł 3282.4 PLN 3.282,40 zł

cena na zapytanie

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 2"
DN 50 mm
Length 136 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD075

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA033-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA033-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA033-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA033-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA033-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA033-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA033-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA033-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA033-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA033-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA033-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA033-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA033-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA033-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA033-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA033-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA033-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA033-D0_SV.pdf
Download
Ball valve made of stainless steel 710000-2"
710000-2" x 1.0
Ball valve made of stainless steel 710000-2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm
Add to Cart
Pneumatic actuator PAD085
PAD085 x 1.0
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
