BA033-12-0L-01

BA033-12-0L-01

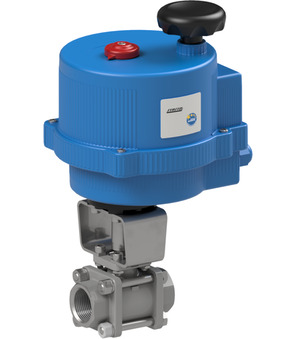

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 8s; Voltage 24VAC/DC; Feedback via potentiometer 0-5kOhm; VB030L-POT

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.21 Kg
Short Itemnumber: BA033120L01
https://www.stasto.pl/web/image/product.template/157379/image_1920?unique=2830eb5

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; RP 1/2"; DN 15mm; pressure range 0-64bar; length 65mm; operating time 8s; voltage 24VAC/DC; feedback via potentiometer 0-5kOhm; VB030L-POT

3.539,40 zł 3539.4 PLN 3.539,40 zł

cena na zapytanie

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-64bar
Brand STASTO
Pressure range 0-64bar
Brand STASTO
Ball valve made of stainless steel 710000-1/2"
710000-1/2" x 1.0 Pcs
Ball valve made of stainless steel 710000-1/2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm
VB030-L-P0T
VB030-L-P0T x 1.0 Pcs
VB030-L-P0T
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-star 11mm; Voltage 24VAC/DC; Protection class IP67; Feedback via potentiometer 0-5kOhm
RI3781 x 1.0 Pcs
RI3781
Mounting bracket; F05/F03-F04; Bolt 11-7
