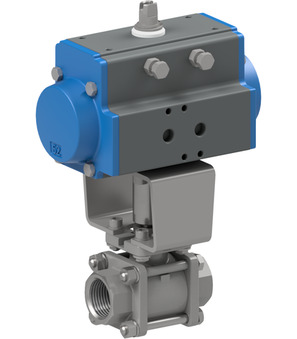

Ball valve with pneumatic actuator BA033-114-S0-A

Ball valve with pneumatic actuator BA033-114-S0-A

Ball valve with pneumatic actuator Series BA033; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 3.99 Kg
Short Itemnumber: BA033114S0A
https://www.stasto.pl/web/image/product.template/159677/image_1920?unique=63f3c6b

ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAS0635

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 1 1/4"
DN 32 mm
Length 106 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
Female thread RP 1 1/4"
DN 32 mm
Length 106 mm
Design ATEX

BA033-114-S0-A

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA033-114-L-A
BA033-114-L-A x 1.0 Pcs
Ball valve made of stainless steel BA033-114-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0…25bar; Length 106mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3033 x 1.0 Pcs
RI3033
Mounting bracket; F05/F03-F04; Bolt 14-8
