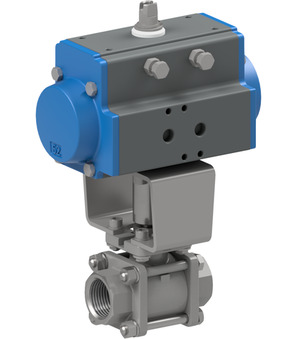

Ball valve with pneumatic actuator BA033-114-D0-A-ABS51-EPC02400-1-EB0X05

Ball valve with pneumatic actuator BA033-114-D0-A-ABS51-EPC02400-1-EB0X05

BA033-114-D0-A
ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.312 Kg
Short Itemnumber: BA033114D0AABS51EPC024001EB0X05
https://www.stasto.pl/web/image/product.template/237170/image_1920?unique=f96ddcc

BA033-114-D0-A
ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 1 1/4"
DN 32 mm
Length 106 mm
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
Female thread RP 1 1/4"
DN 32 mm
Length 106 mm
Voltage 24VDC
Design ATEX
Switch type Crouzet 831391 - ATEX
Contact material Silver-nickel
Material of case Plastic

BA033-114-D0-A-ABS51-EPC02400-1-EB0X05

Documents

8 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

2
English
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

2
French / Français
ZIP

Data Sheets

4

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

2
Ball valve with pneumatic actuator BA033-114-D0-A
BA033-114-D0-A x 1.0 Pcs
Ball valve with pneumatic actuator BA033-114-D0-A
Ball valve with pneumatic actuator Series BA033; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; Actuator PAD052
Mounted pilot valve ABS51
ABS51 x 1.0 Pcs
Mounted pilot valve ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
EPC02400-1
EPC02400-1 x 1.0 Pcs
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
EB0X05
EB0X05 x 1.0 Pcs
EB0X05
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831391 - ATEX; Contact material Silber-Nickel; Material of case Plastic
