Ball valve with pneumatic actuator Series BA033-D0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA033-D0
  6. BA033-10-D0-03-ABS51-C001-03-C002-31-6-EB0X04YA-C0

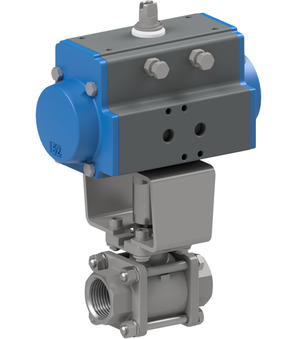

BA033-10-D0-03-ABS51-C001-03-C002-31-6-EB0X04YA-C0

BA033-10-D0-03-ABS51-C001-03-C002-31-6-EB0X04YA-C0

BA033-10-D0-03
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD063; Mounting kits Stainless steel
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X04YA-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 83161301; Contact material Silver-nickel; Material of case Aluminum; With visual position indicator On/off

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.71 Kg
Short Itemnumber: BA03310D003ABS51C00103C002316EB0X04YAC0
https://www.stasto.pl/web/image/product.template/185260/image_1920?unique=3970b0b

BA033-10-D0-03
ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAD063; mounting kits stainless steel
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X04YA-C0
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 83161301; contact material silver-nickel; material of case aluminum; with visual position indicator on/off

3.902,40 zł 3902.4 PLN 3.902,40 zł

cena na zapytanie

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Valve interface Namur 1/4"
Female thread RP 1"
DN 25 mm
Length 92 mm
Designs
Connector size 22
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...40 bar
characteristics
Coil C001
Actuator PAD052

Data sheets, Instructions, 3D-files and Certificates...
