BA029-40-S2

BA029-40-S2

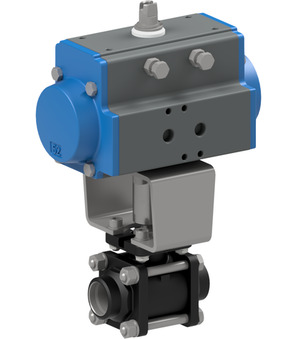

Ball valve with pneumatic actuator; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.55 Kg
Short Itemnumber: BA02940S2
https://www.stasto.pl/web/image/product.template/162697/image_1920?unique=3970b0b

ball valve with pneumatic actuator; butt weld ends; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 4...8bar; medium temperature -10...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAS1155

4.053,70 zł 4053.7 PLN 4.053,70 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of steel 40-0-25-116
    715000-40 x 1.0
    Ball valve made of steel 40-0-25-116
    Ball valve made of steel Series 715000; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
    Add to Cart
    Pneumatic actuator PAS1153
    PAS1153 x 1.0
    Pneumatic actuator PAS1153
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 60,8Nm
