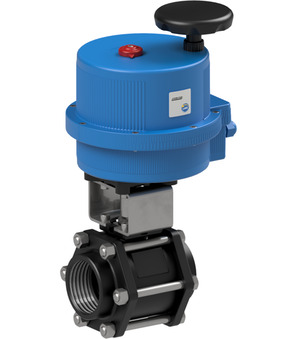

Ball valve with electrical actuator BA028-212-0L-01

Name: Ball valve with electrical actuator BA028-212-0L-01
Brand: STASTO
SKU: BA028-212-0L-01

Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 21/2"; DN 65mm; Pressure range 0-16bar; Length 153mm; Control ball V 30...60°; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA0282120L01

ball valve with electrical actuator; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; RP 21/2"; DN 65mm; pressure range 0-16bar; length 153mm; Control ball V 30...60°; operating time 27s; voltage 24VAC/DC

On request

Female thread
- RP 2 1/2"
DN
- 65 mm
Length
- 153 mm
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB110L
Operating time
- 27 s

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Female thread	RP 2 1/2"
DN	65 mm
Length	153 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...16 bar
characteristics
Actuator	VB110L
Operating time	27 s

BA028-212-L-01 x 1.0

Ball valve made of steel 21/2"-65-0-16-153

Ball valve made of steel; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Control ball V 30...60°

Add to Cart

VB110-L x 1.0

Electrical actuator VB110-L

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3003 x 1.0
