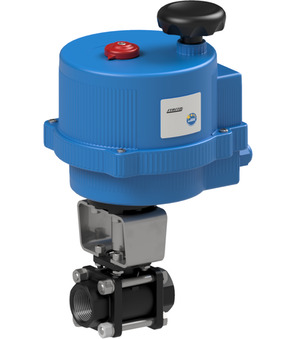

Ball valve with electrical actuator BA028-10-0L-01

Name: Ball valve with electrical actuator BA028-10-0L-01
Brand: STASTO
SKU: BA028-10-0L-01

Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 92mm; Control ball V 30...60°; Operating time 119s; Voltage 15-30V/50-60Hz, 12-48VDC

Intrastat No.: 84818081
Country of origin: France
Short Itemnumber: BA028100L01

ball valve with electrical actuator; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; RP 1"; DN 25mm; pressure range 0-40bar; length 92mm; Control ball V 30...60°; operating time 119s; voltage 15-30V/50-60Hz, 12-48VDC

On request

Female thread
- RP 1"
DN
- 25 mm
Length
- 92 mm
Voltage
- 24VAC/DC
Pressure range
- 0...40 bar
Actuator
- VB030L
Operating time
- 8 s

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Female thread	RP 1"
DN	25 mm
Length	92 mm
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...40 bar
characteristics
Actuator	VB030L
Operating time	8 s

BA028-10-L-01 x 1.0

Ball valve made of steel BA028-10-L-01

Ball valve made of steel; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Control ball V 30...60°

Add to Cart

ER100-0N119-Q22 x 1.0

Electrical actuator ER100-0N119-Q22

Electrical actuator Series ER; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP66; Torque 100Nm; Operating time 119s; Flange ISO5211 F05/F07-Stern 22mm; Voltage 15-30V/50-60Hz, 12-48VDC

Add to Cart

ATSV0704 x 1.0
