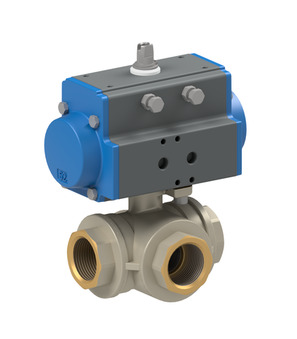

BA010-34-2S1-01

BA010-34-2S1-01

Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 3...8Bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30Bar; Length 87mm; Actuator PAS1001-A; Ball T; Flow path 02; Inverse direction of rotation

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.99 Kg
Short Itemnumber: BA010342S101
https://www.stasto.pl/web/image/product.template/134691/image_1920?unique=c096d6d

ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 3...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-30bar; length 87mm; actuator PAS1001-A; ball T; flow path 02; inverse direction of rotation

3.084,00 zł 3084.0 PLN 3.084,00 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass 3500-3/4"
    3500-3/4" x 1.0
    Ball valve made of brass 3500-3/4"
    Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30bar; Length 87mm; Ball T
    Add to Cart
    Pneumatic actuator PAS1001-A
    PAS1001-A x 1.0
    Pneumatic actuator PAS1001-A
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 24,6Nm
    Add to Cart
    A4/338/99 x 1.0
    A4/338/99
    Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
    Add to Cart
