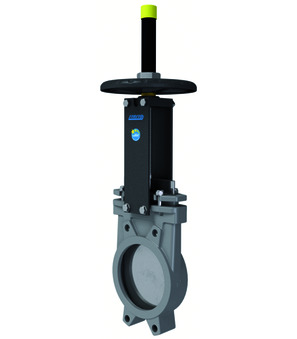

Knife gate valve with handwheel Series AB1V; Wafer type; Non rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0…6bar
Intrastat No.: 84818063
Country of origin: Spain
Weight: 56.0 Kg
Short Itemnumber: AB1VN2I25300
Country of origin: Spain
Weight: 56.0 Kg
Short Itemnumber: AB1VN2I25300
knife gate valve with handwheel series AB1V; wafer type; non rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0…6bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 150 mm |
| Length | 60 mm |
| Design | ATEX |
| Pressure range | 0...10 bar |
| DN | 150 mm |
| Length | 60 mm |
| Design | ATEX |
No spare parts are available for this product.
