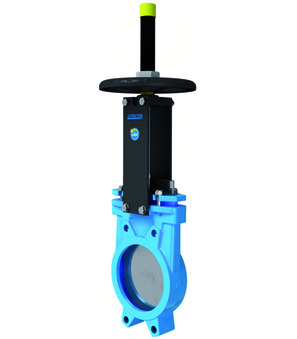

Knife gate valve with handwheel AB1VN2H2-5-200-B

Knife gate valve with handwheel AB1VN2H2-5-200-B

Knife gate valve with handwheel Series AB1V; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0…10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 40.0 Kg
Short Itemnumber: AB1VN2H25200B
https://www.stasto.pl/web/image/product.template/179906/image_1920?unique=d5e9354

knife gate valve with handwheel series AB1V; wafer type; non rising stem; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0…10bar

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 200 mm
Length 60 mm
Pressure range 0...10 bar
DN 200 mm
Length 60 mm
No spare parts are available for this product.
